EIFS/ETICS- Facade Insulation System
- Systems
- EIFS/ETICS- Facade Insulation System

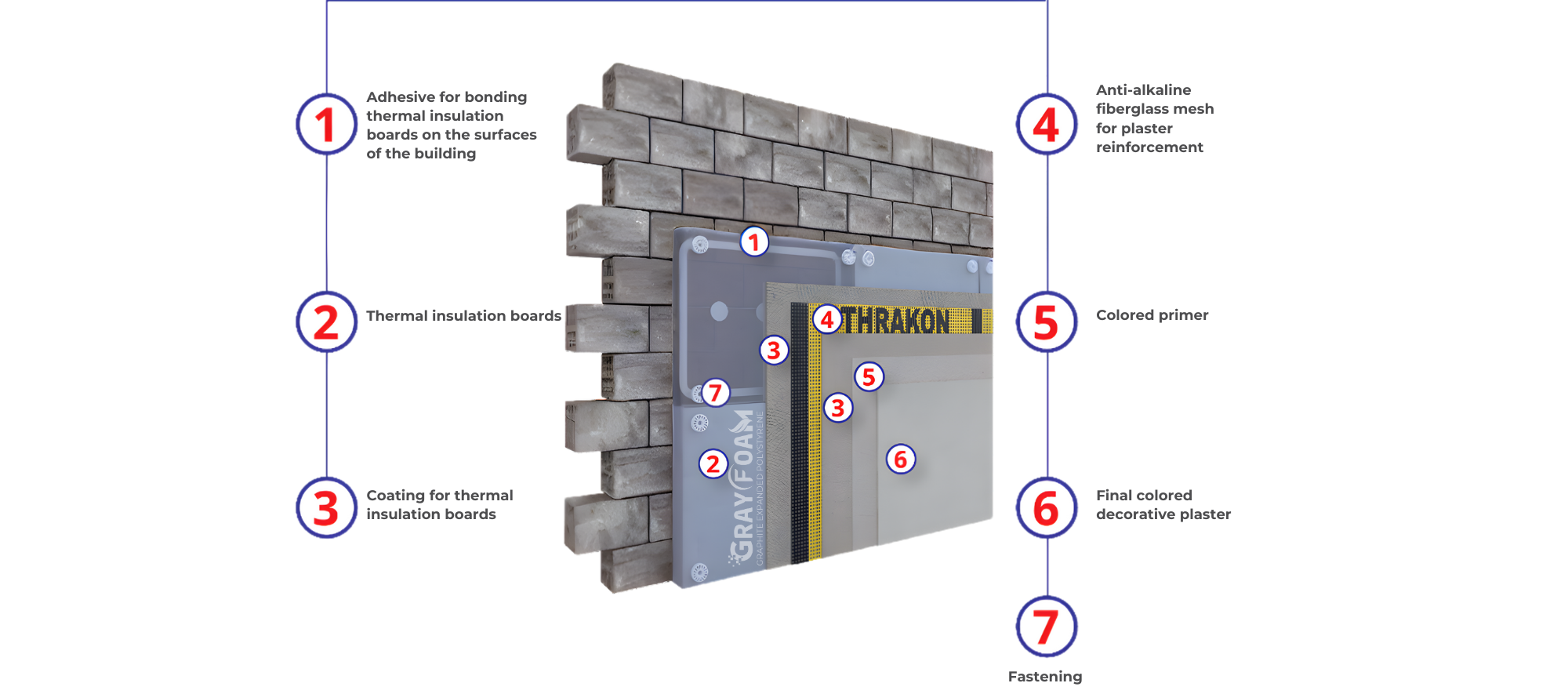

EIFS (Exterior Insulation and Finish System), also known as ETICS (External Thermal Insulation Composite System), is an advanced exterior wall insulation solution designed to improve energy efficiency, thermal performance, and building aesthetics. It is widely adopted in commercial, residential, and industrial buildings across hot and mixed climates.
In regions such as the UAE and GCC, where high temperatures significantly impact cooling loads, EIFS/ETICS plays a critical role in reducing HVAC energy consumption and enhancing indoor comfort.
Adhesives for Insulation Boards / Basic Coat Plaster
PRO THC 404
Fiber-reinforced, polymer-modified cementitious adhesive & base coat for ETICS.
• Use: Bonding & plastering EPS, XPS, GRAY EPS
• Color: White / Gray
• Packaging: 25 kg bags
• Consumption: ~3.5–4.0 kg/m² (adhesive or base coat)
• Features: Strong adhesion, high elasticity, freeze & moisture resistant
• Application: Internal & external
• Standards: EN 998 (CS IV), EPD certified
Ideal for concrete, masonry, AAC (YTONG), bricks, and mixed substrates.
OHANA Polystyrene (Insulation Material)

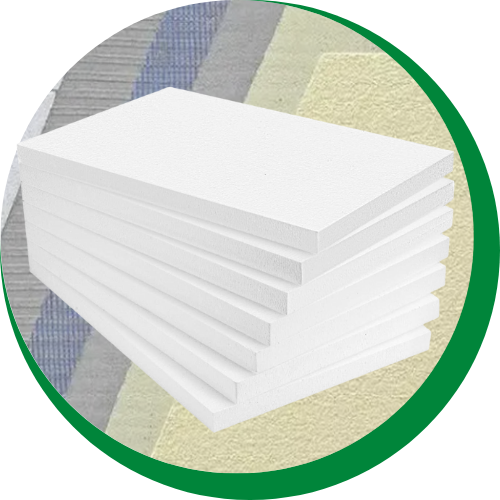

OHANA EPS
OHANA EPS is a lightweight, cost-effective insulation board used in EIFS for its stable thermal performance, easy workability, and smooth finish.

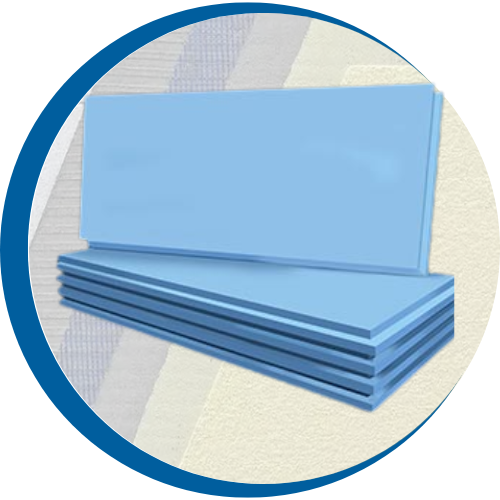

OHANA XPS
OHANA XPS is a high-strength, closed-cell insulation board that provides superior moisture resistance and durability for EIFS, especially in high-impact or humid areas.

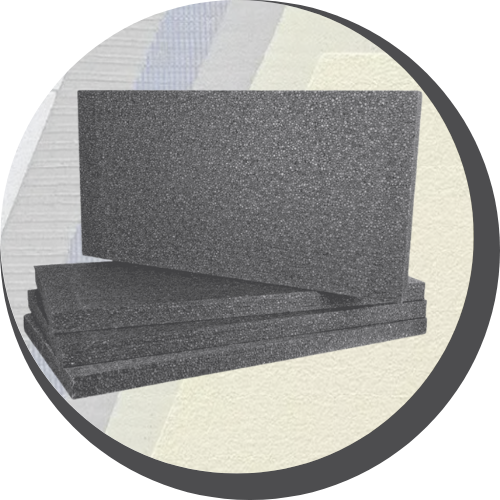

OHANA GRAY EPS
OHANA Gray EPS is a graphite-enhanced insulation board offering significantly higher thermal efficiency than regular EPS, enabling thinner, energy-efficient EIFS systems.
Impregnating Coating

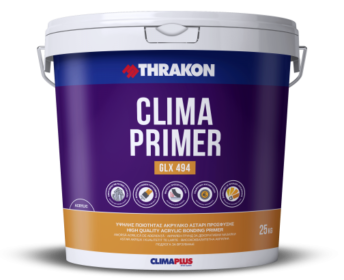

GLX 494 CLIMA PRIMER
Transparent acrylic primer for organic renders & paints.
• Packaging: 5 kg & 25 kg
• Consumption: ~0.20–0.25 kg/m² (after dilution)
• Dilution: ~20–25% with water
• Use: Concrete, plasters, cement screeds, absorbent surfaces
•
Benefits: Deep penetration, strong bonding, water resistance, vapor permeable, solvent-free, durable
Top Coat

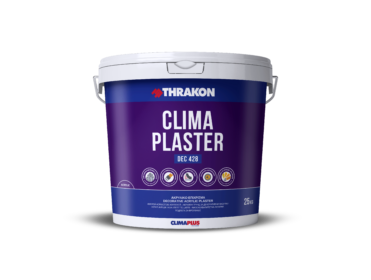

DEC 428 CLIMA PLASTER
Acrylic, silicon-modified colored render for ETICS final finish.
• Form: Ready-to-use paste
• Packaging: 25 kg bucket
• Colors: Wide range
• Use: External & internal decorative final coat
• Features: High hardness, water-repellent, vapor permeable
• Application: ETICS, cement plasters, concrete, painted surfaces
Note: No painting required
Reinforcement Mesh

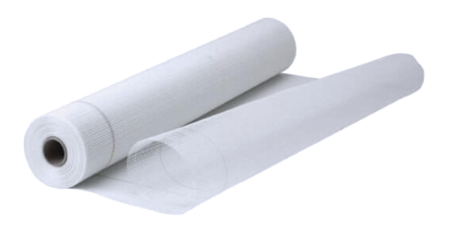

EIFS Mesh (160 g/m²)
Anti-alkaline fiberglass mesh (160 g/m²) • Hue: White • Packaging: Roll 1 m x 50 m • Consumption: 1.1 m/m² • Produced under ETAG 004. Suitable for the reinforcement of the basic layer of the external thermal insulation system CLIMAPLUS
Fastening Products
Plastic Anchors for bricks
Packaging: 250 pcs/box Plastic anchor for fastening insulation boards on bricks. Applied by nailing.
Applications

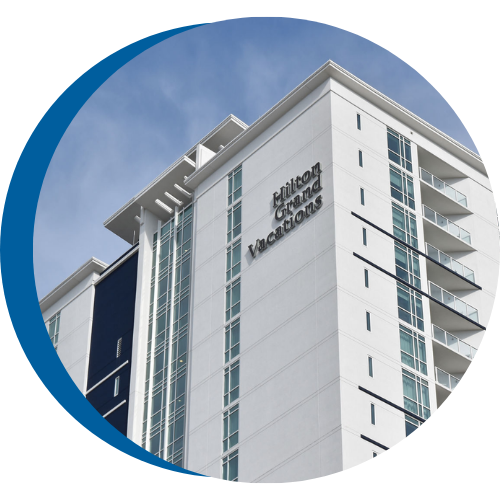

High-Rise Residential & Commercial Buildings

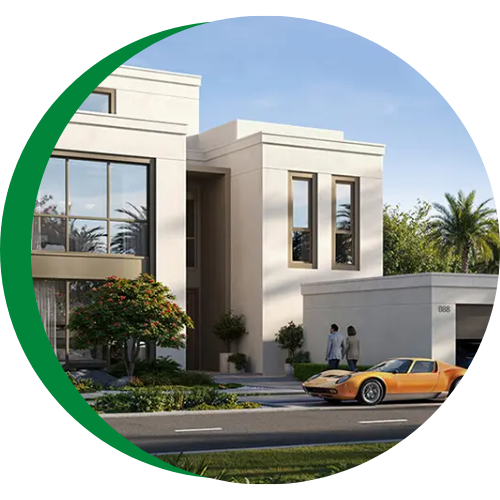

Villas & Townhouses
Hotels, Resorts & Hospitality Buildings

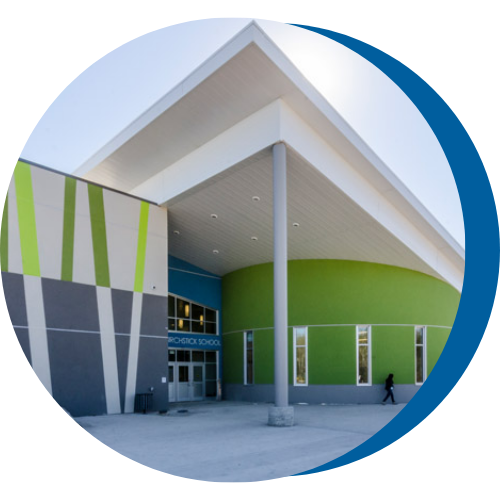

Schools, Universities & Public Buildings

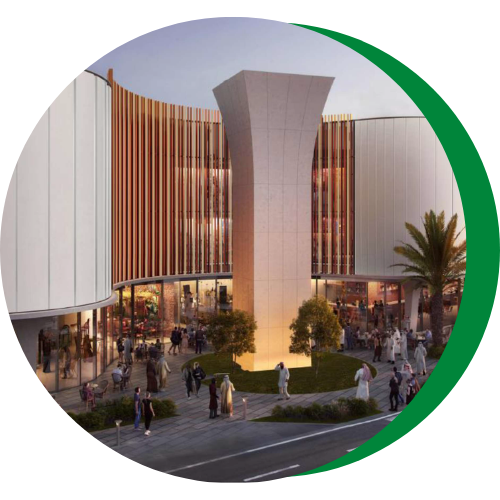

Retail, Shopping Malls & Commercial Complexes

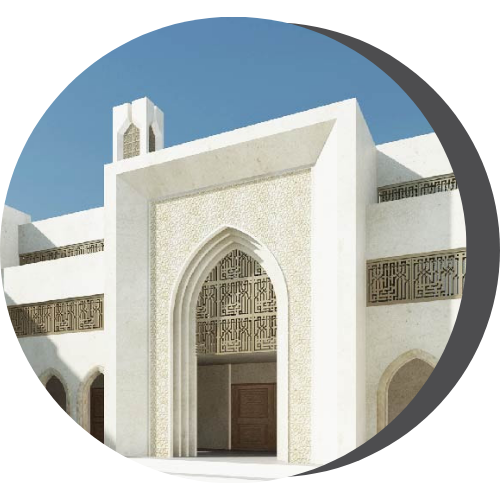

Mosques & Cultural Buildings
Benefits
High Thermal Insulation
Reduces heat gain, lowers cooling demand, and improves energy efficiency.
Energy Cost Savings
Ideal for hot climates, helping meet local energy codes and green building standards.
Lightweight System
Adds minimal dead load to the structure compared to traditional cladding systems.
Design Flexibility
Available in various textures, colors, and architectural finishes.
Moisture & Weather Protection
Properly designed systems resist moisture ingress and harsh environmental conditions.
Sustainability & Green Building Compliance
Supports LEED, Estidama, and regional energy-efficiency requirements.
Partnership- UAE & OMAN
THRAKON is a European construction materials leader with over 60 years of expertise, 1,700+ product codes, and six advanced production plants in Greece. Operating across more than 40 countries, the company delivers ISO and CE certified systems and is widely recognized for its strong specialization in ETICS through the CLIMAPLUS façade insulation system.
